Technical Date:
GENSET Model | YK1100i | ||
Rated frequency (Hz) | 50 | Engine model | 156F (2.8HP) |
Rated voltage (V) | 230 | Engine type | 1 cylinder, OHV gasoline |
Rated current (A) | 4.8 | Displacement (cc) | 98.5 |
Rated speed (r/min) | 2800-3600 | Fuel capacity (L) | 4.5 |
Rated output (W) | 1100 | Cont. running time (Hrs.) | 6 |
Max. output (W) | 1200 | Starting system | Recoil starter |
Phase number | Single | Packing size L×W×H (mm) | 340×340×360 |
Alternator type | 100% copper winding,Rare earth permanent magnet alternator | Net / Gross weight (kg) | 16 / 18 |
QTY 20’GP / 40’HQ (Sets) | 606 / 1428 |
![1100W/220V/50-60Hz-6](https://d108.goodao.net/uploads/1c5a880f.jpg)
![1100W/220V/50-60Hz-7](https://d108.goodao.net/uploads/5fceea16.jpg)
![Features1](https://d108.goodao.net/uploads/15a6ba39.jpg)
100% Copper Winding
![Features2](https://d108.goodao.net/uploads/14f207c9.jpg)
Rare earth Permanent Magnet Alternator
![Features3](https://d108.goodao.net/uploads/bcaa77a1.jpg)
Inverter Technology Stable Output
![1100W/220V/50-60Hz-6](https://d108.goodao.net/uploads/1c5a880f.jpg)

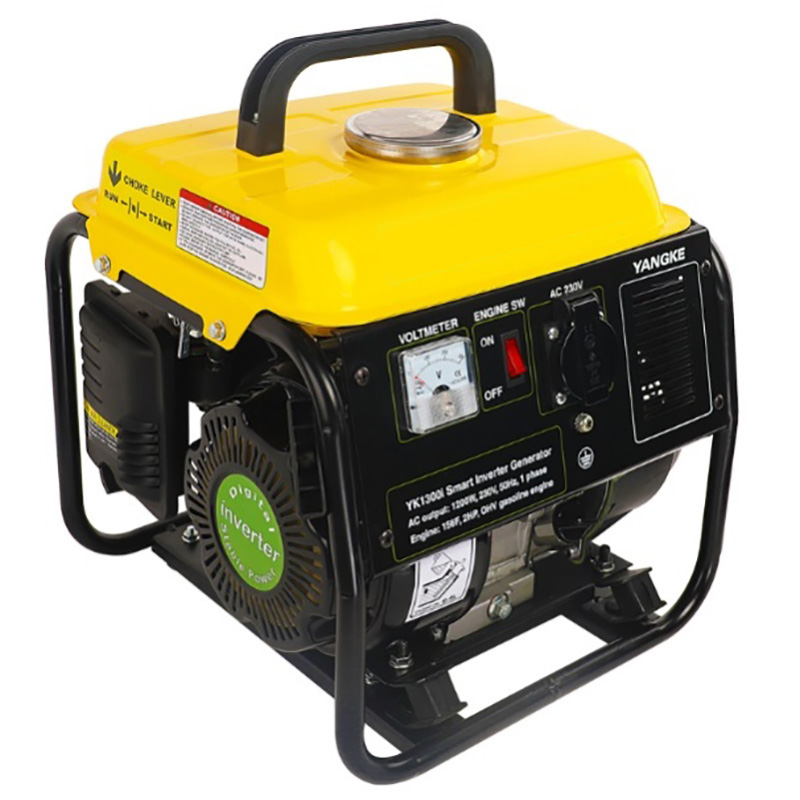

Portable Compact Size, only 17kg
![1100W/220V/50-60Hz-8](https://d108.goodao.net/uploads/95fb98ab.jpg)
2-Levels Adjustable Output
-

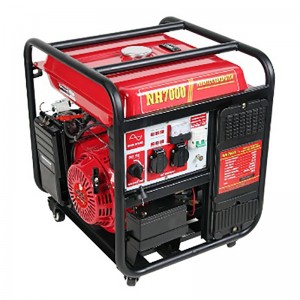

Gasoline inverter generator 7000W/220V/50-60Hz
-
