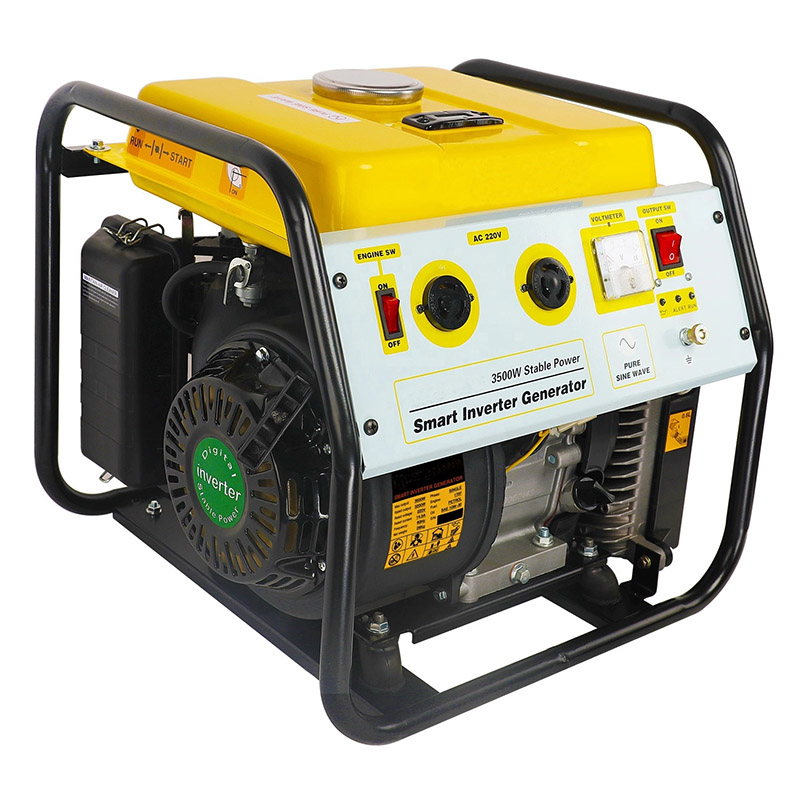

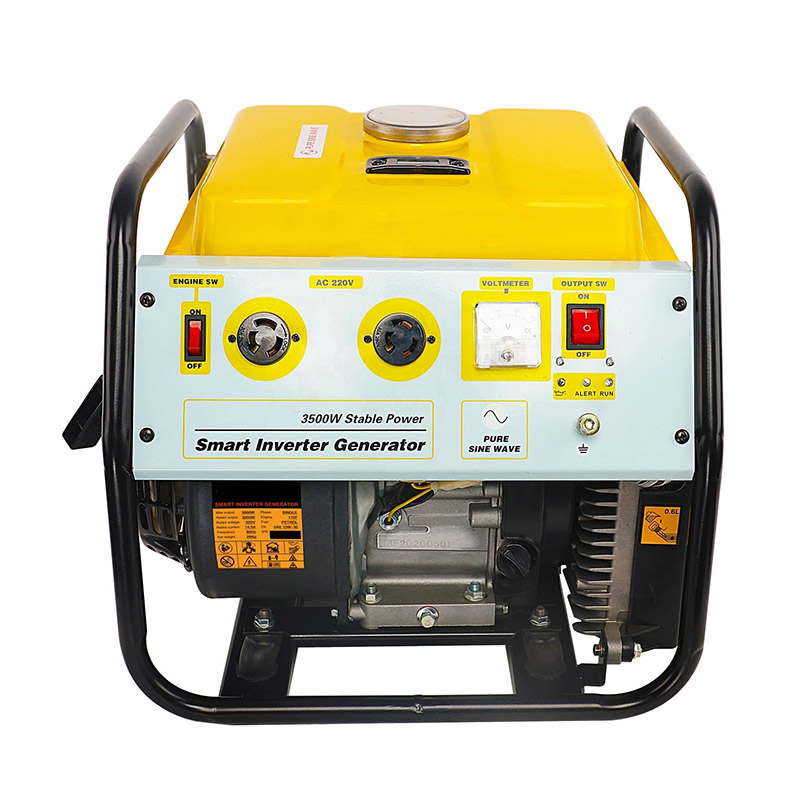

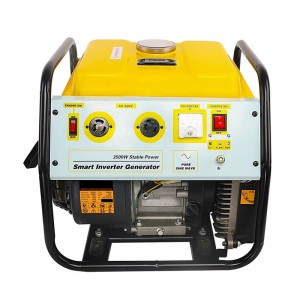

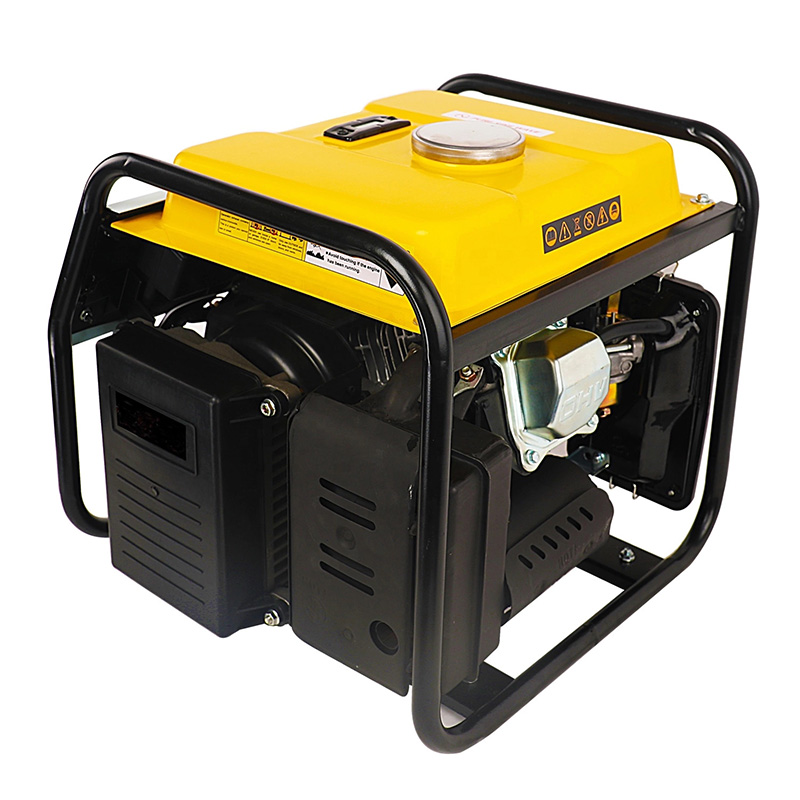

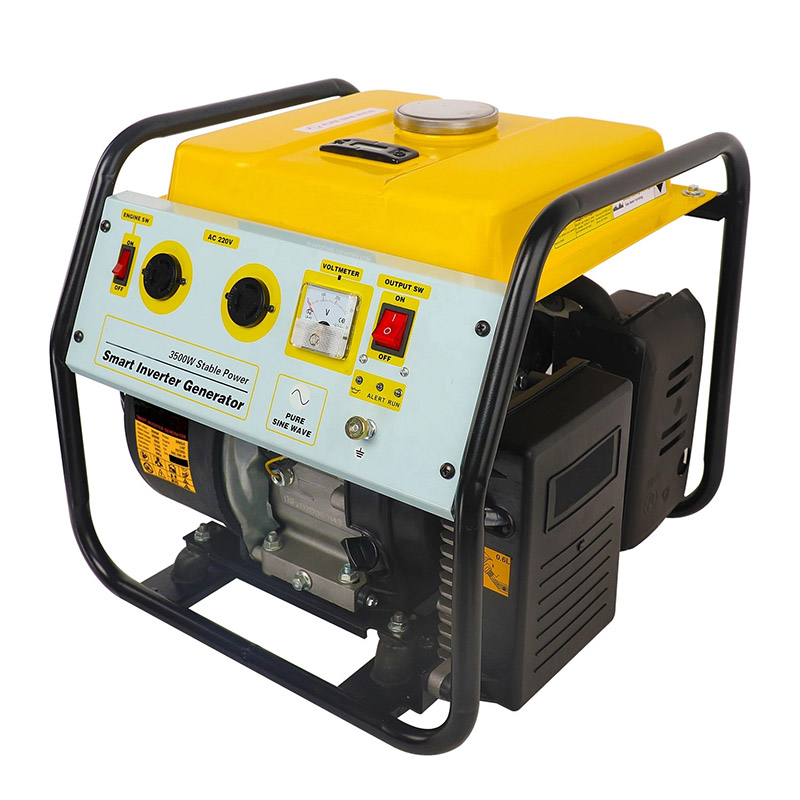

Gasoline inverter generator 3200W/220V/50-60Hz

Short Description:

Place of Origin:China
Brand Name:OEM
Model Number:3200W
Rated Voltage:230V
Rated Current:13.9A
Speed:2600-3600r/min
Frequency:50/60HZ
Engine model:170F (7HP)
Engine type:1 cylinder, OHV gasoline
Alternator type:100% copper winding, Permanent magnet alternator
Displacement:212cc
Fuel capacity:5.7L
Continuous Running Time(Hrs):4.5@rated power
Starting system:Recoil starter
Packing size L*W*H (mm):430*420*420
Net / Gross weight (kg):28 / 30
QTY 20′GP/40′HQ(sets):325 / 810

Send email to us

Product Detail

Product Tags

3200W AC output

Pure sine wave

Compact design

Double wind channel

Technical Date:

GENSET Model		YK3200i
Rated frequency (Hz)	50	Engine model	170F (7HP)
Rated voltage (V)	230	Engine type	1 cylinder, OHV gasoline
Rated current (A)	13.9	Displacement (cc)	212
Rated speed (r/min)	2600-3600	Fuel capacity (L)	5.7
Rated output (W)	3200	Cont. running time (Hrs.)	4.5 @ rated power
Max. output (W)	3500	Starting system	Recoil starter
Phase number	Single	Packing size L×W×H (mm)	430×420×420
Alternator type	100% copper winding,Rare earth permanent magnet alternator	Net / Gross weight (kg)	28 / 30
Alternator type	100% copper winding,Rare earth permanent magnet alternator	QTY 20’GP / 40’HQ (Sets)	325 / 810
