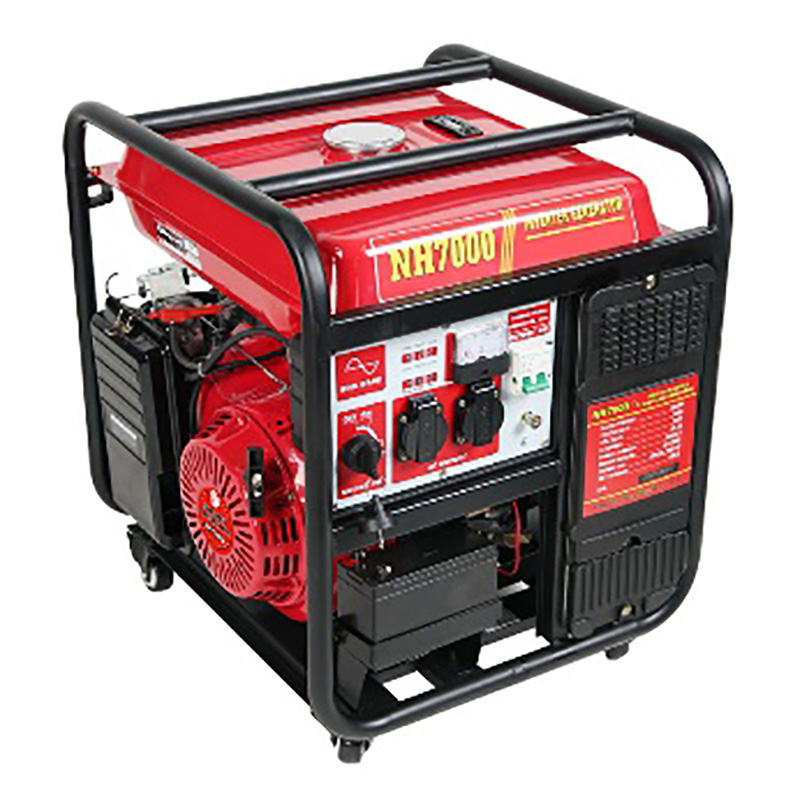

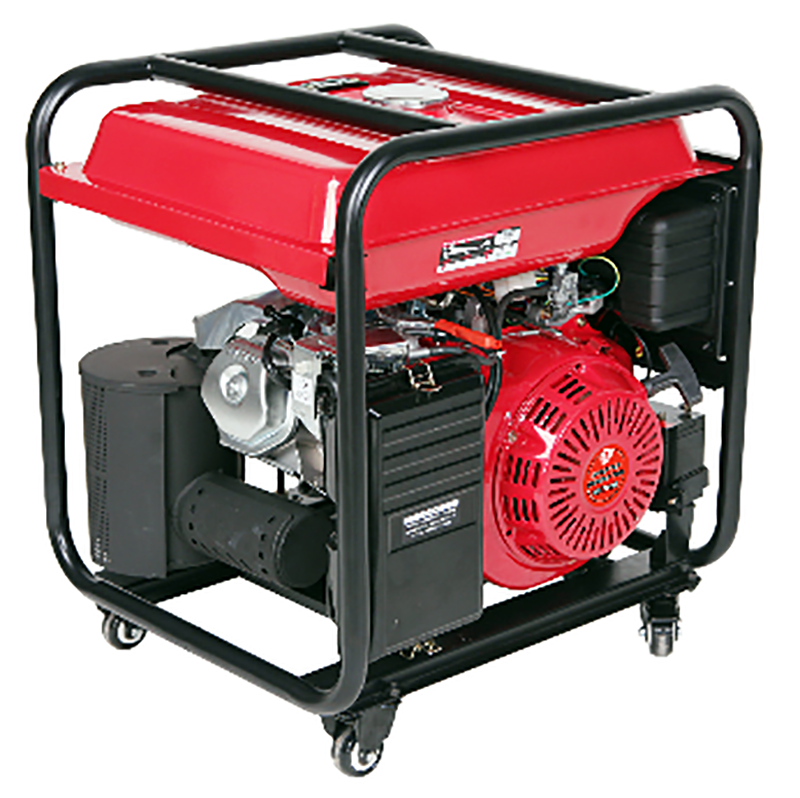

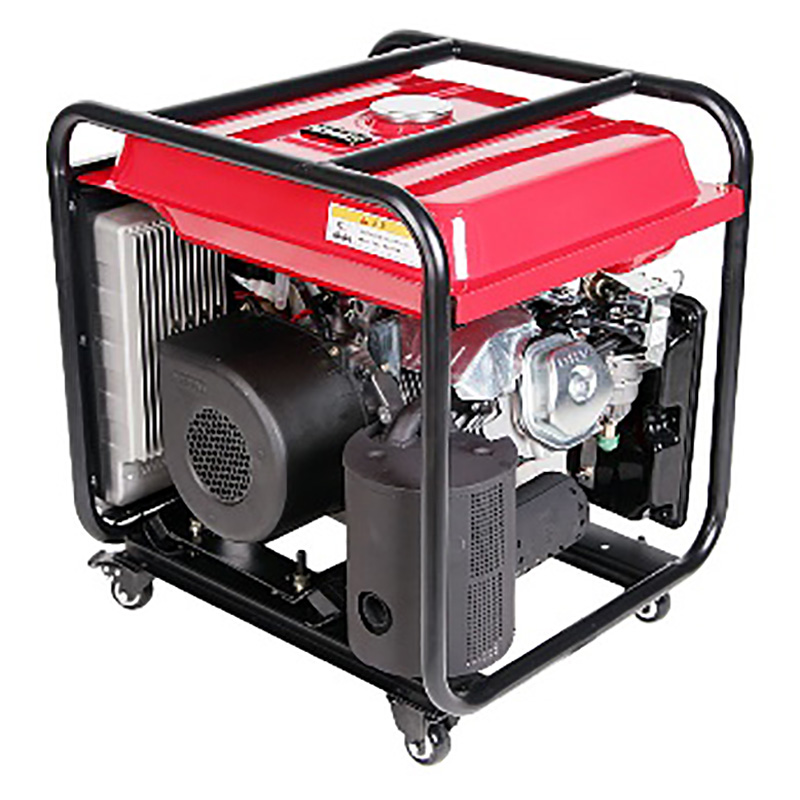

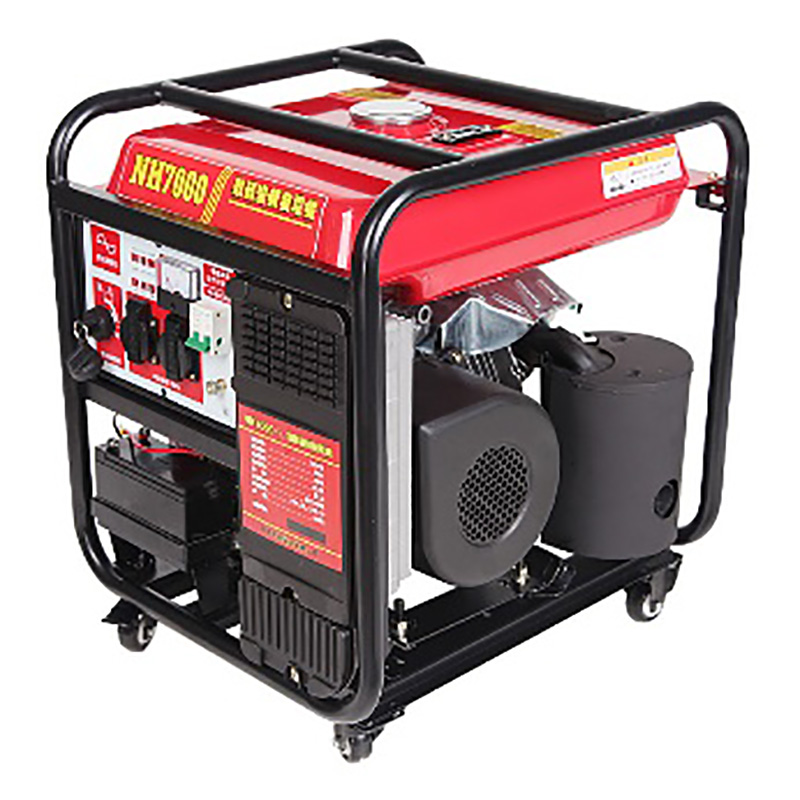

GENSET Model | YK7000i | ||
Rated frequency (Hz) | 50 | Engine model | 190FE (15HP) |
Rated voltage (V) | 230 | Engine type | 1 cylinder, OHV gasoline |
Rated current (A) | 28.3 | Displacement (cc) | 420 |
Rated speed (r/min) | 3000-3600 | Fuel capacity (L) | 19 |
Rated output (W) | 7000 | Cont. running time (Hrs.) | 7.0 @ rated power |
Max. output (W) | 7200 | Starting system | Recoil / Electric starter |
Phase number | Single | Packing size L×W×H (mm) | 585×510×590 |
Alternator type | 100% copper winding,Rare earth permanent magnet dual-alternators | Net / Gross weight (kg) | 62 / 64 |
QTY 20’GP / 40’HQ (Sets) | 160 / 350 |





Dual-alternator 100% copper winding

Inverter Technology Stable Output


3-LevelsAdjustable Output High Fuel Efficiency

-
